CSS Shapes

This article includes examples of styling different shapes: triangles, parallelograms, diamonds, comic bubbles, and more.

Border-Radius Property

The border-radius property is an important concept to understand before styling any CSS figures. It allows rounding corners of HTML elements. The curve for each angle is determined by one or two radii defining its shape — a circle or an ellipse. The radius extends to the entire background, even if the element has no borders.

The border-radius property allows rounding all corners of HTML elements at the same time. If you set two values for the border-radius property, the first value will round the upper left and lower right corners, and the second one will round the upper right and lower left corners. You can use px, em, % or other units to set values.

By using the border-top-left-radius, border-top-right-radius, border-bottom-left-radius, and border-bottom-right-radius properties, you can round each corner in its own way.

The values separated by the slash (/) symbol define the horizontal and vertical radii.

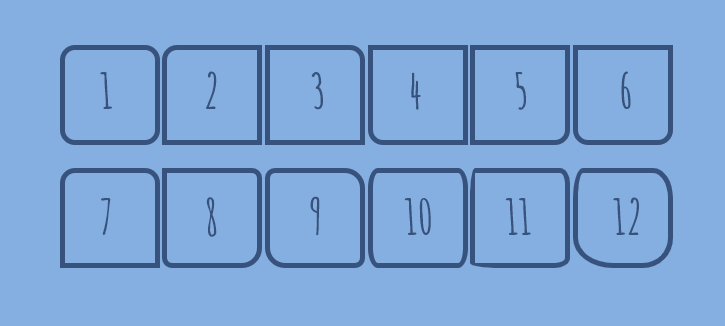

Below are some examples of shapes with different border radii.


.shape1 { border-radius: 15px; }
.shape2 { border-top-left-radius: 15px; }
.shape3 { border-top-right-radius: 15px; }
.shape4 { border-bottom-left-radius: 15px; }
.shape5 { border-bottom-right-radius: 15px; }
.shape6 { border-radius: 0 0 15px 15px; }
.shape7 { border-radius: 15px 15px 0 0; }
.shape8 { border-radius: 0 10px 20px; }
.shape9 { border-radius: 10px 20px; }
.shape10 { border-radius: 10px/20px; }
.shape11 { border-radius: 5px 10px 15px 30px/30px 15px 10px 5px; }
.shape12 { border-radius: 10px 20px 30px 40px/30px; }

.shape {
  display: inline-block;
  width: 100px;
  height: 100px;
  border: 5px solid #32557f;
}

There are online instruments to play with different border radii: link 1, link 2.

Read also our article about CSS buttons.

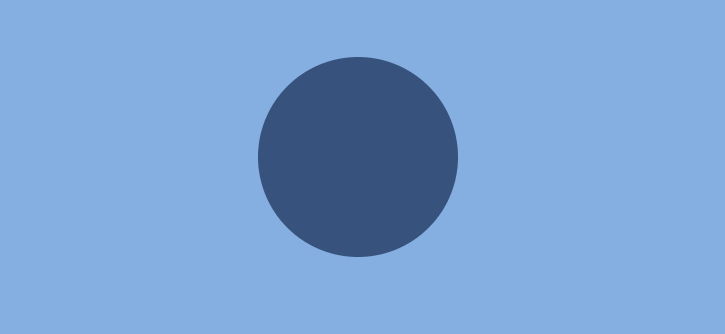

Circle

A circle is the simplest CSS shape. Apply the border-radius: 50%; property to an element with identical width and height, and you’ll get a circle.


.circle {
  background: #32557f;
  width: 200px;
  height: 200px;
  border-radius: 50%;
}

The border-top-left-radius, border-top-right-radius, border-bottom-left-radius or border-bottom-right-radius property with the value 100% will make a quarter-circle.

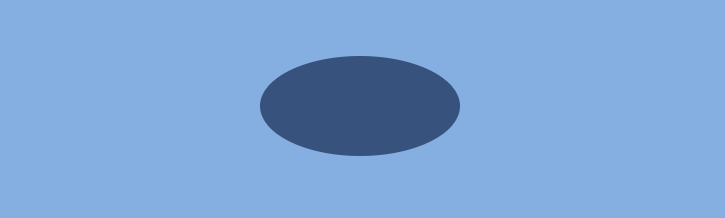

Ovals/Ellipses

Ovals are made in the same way as circles. The only difference is that ovals’ width should be different from its height.


.ellipse {
  background: #32557f;
  width: 200px;
  height: 100px;
  border-radius: 50%;
}

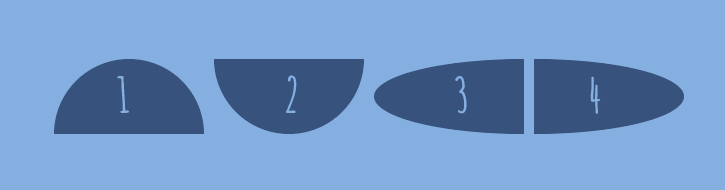

Half-Ellipses

To make half-ellipses, use sets of values separated by the slash (/) symbol to define the horizontal and vertical radii. If you put 50% before the slash symbol, you will get a vertical half-ellipse. And if you put 50% after the slash symbol, you’ll get a horizontal half-ellipse. Combinations of 0 and 100% values define the direction of your half-ellipse. See the examples below.


.half-ellipse1 { border-radius: 50% / 100% 100% 0 0; }
.half-ellipse2 { border-radius: 50% / 0 0 100% 100%; }
.half-ellipse3 { border-radius: 100% 0 0 100% / 50%; }
.half-ellipse4 { border-radius: 0 100% 100% 0 / 50%; }

.half-ellipse {
  background: #32557f;
  width: 150px;
  height: 75px;
}

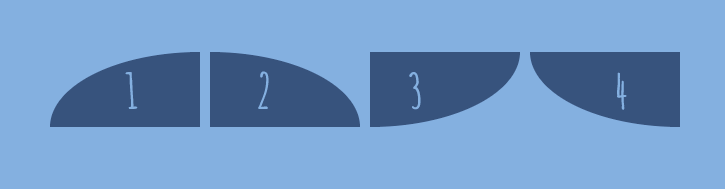

Quarter-Ellipses

To make quarter-ellipses, use combinations of 0 and 100% values.


.quarter-ellipse1 { border-radius: 100% 0 0 0; }
.quarter-ellipse2 { border-radius: 0 100% 0 0; }
.quarter-ellipse3 { border-radius: 0 0 100% 0; }
.quarter-ellipse4 { border-radius: 0 0 0 100%; }

.quarter-ellipse {
  background: #32557f;
  width: 150px;
  height: 75px;
}

And here is how you make a cone:


.cone {
  width: 0;
  height: 0;
  border-left: 70px solid transparent;
  border-right: 70px solid transparent;
  border-top: 100px solid #32557f;
  border-radius: 50%;
}

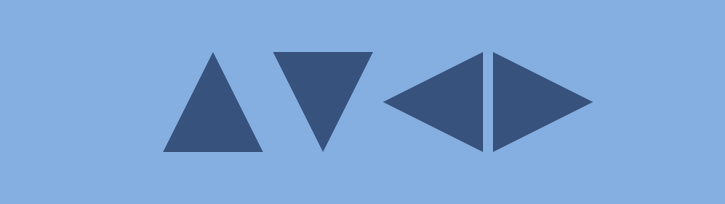

Triangles

CSS triangles are useful to create arrows, for example, in a select element or inside buttons.

To make a triangle, create a box with zero width and height.


.triangle {
  width: 0;
  height: 0;
}

The actual width and height of the arrow are determined by the width of the border. In an up arrow, for example, the bottom border is colored while the left and right are transparent, which forms the triangle.


.triangle .triangle-up {
  border-left: 50px solid transparent;
  border-right: 50px solid transparent;
  border-bottom: 100px solid #32557f;
}

.triangle .triangle-down {
  border-left: 50px solid transparent;
  border-right: 50px solid transparent;
  border-top: 100px solid #32557f;
}

.triangle .triangle-left {
  border-top: 50px solid transparent;
  border-right: 100px solid #32557f;
  border-bottom: 50px solid transparent;
}

.triangle .triangle-right {
  border-top: 50px solid transparent;
  border-left: 100px solid #32557f;
  border-bottom: 50px solid transparent;
}

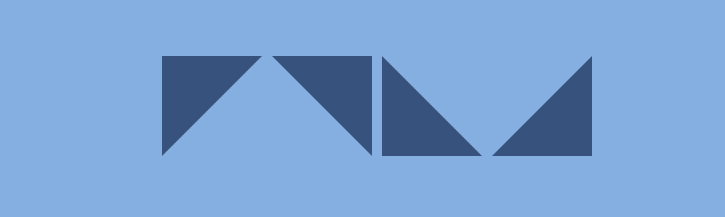

To make a right triangle (a right-angled triangle), make the top or bottom colored and leave the right or left border transparent.


.triangle .triangle-top-left {
  border-top: 100px solid #32557f;
  border-right: 100px solid transparent;
}

.triangle .triangle-top-right {
  border-top: 100px solid #32557f;
  border-left: 100px solid transparent;
}

.triangle .triangle-bottom-left {
  border-bottom: 100px solid #32557f;
  border-right: 100px solid transparent;
}

.triangle .triangle-bottom-right {
  border-bottom: 100px solid #32557f;
  border-left: 100px solid transparent;
}

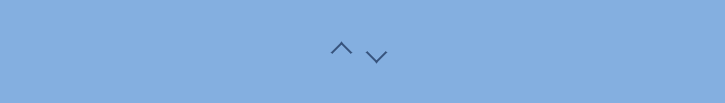

Arrows

To create a simple arrow without a tail, make a box with a width and height, border, as well as zero left and top borders.


.arrow {
  width: 15px;
  height: 15px;
  border: 2px solid #32557f;
  border-left: 0;
  border-top: 0;
}

To make an up arrow, add the transform: rotate(225deg); property, and to make a down arrow, add the transform: rotate(45deg); property to rotate the arrow to 225 and 45 degrees respectively.


.arrow-up { transform: rotate(225deg); }
.arrow-down { transform: rotate(45deg); }

You can also make a curved arrow with a tail:


.arrow-curved {
  position: relative;
  width: 0;
  height: 0;
  border-top: 9px solid transparent;
  border-right: 9px solid #32557f;
  transform: rotate(10deg);

  &:after {
    content: "";
    position: absolute;
    border: 0 solid transparent;
    border-top: 3px solid #32557f;
    border-radius: 20px 0 0 0;
    top: -12px;
    left: -9px;
    width: 12px;
    height: 12px;
    transform: rotate(45deg);
  }
}

And below is an example of how to create an arrow-pointer:


.arrow-pointer {
  width: 250px;
  height: 50px;
  background: #32557f;
  position: relative;

  &:after {
    content: '';
    position: absolute;
    left: 0; bottom: 0; width: 0; height: 0;
    border-left: 25px solid #7eb4e2;
    border-top: 25px solid transparent;
    border-bottom: 25px solid transparent;
  }

  &:before {
    content: '';
    position: absolute;
    right: -25px;
    bottom: 0;
    width: 0;
    height: 0;
    border-left: 25px solid #32557f;
    border-top: 25px solid transparent;
    border-bottom: 25px solid transparent;
  }
}

Squares and Rectangles

To make a square, create a box with identical width and height properties. For a rectangle, make the width larger than its height. It’s quite simple.


.square {
  width: 100px;
  height: 100px;
  background: #32557f;
}

.rectangle {
  width: 200px;
  height: 100px;
  background: #32557f;
}

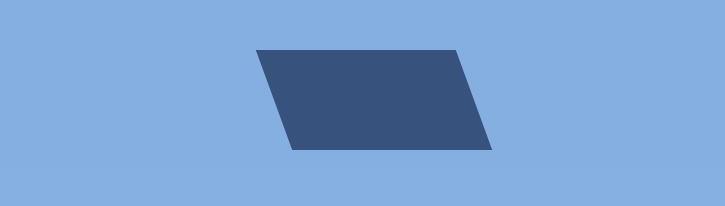

Parallelograms

To make a parallelogram, create a rectangle and add the transform: skew(20deg); property. You can choose other degrees to make the parallelogram more or less pronounced.


.parallelogram {
  width: 200px;
  height: 100px;
  background: #32557f;
  transform: skew(20deg);
}

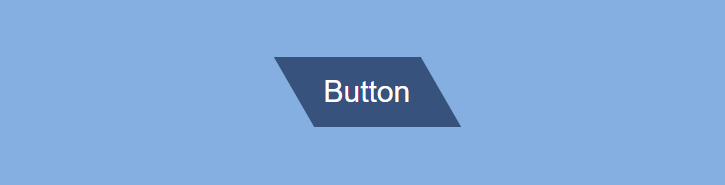

To make a parallelogram-shaped button with a text inside, use a pseudoelement.


.parallelogram-button {
  position: relative;
  padding: .6em 1em;
  border: 0;
  margin: .6em;
  background: transparent;
  font-size: 30px;
  color: white;

  &::before {
    content: '';
    position: absolute;
    top: 0; right: 0; bottom: 0; left: 0;
    z-index: -1;
    background: #32557f;
    transform: skew(30deg);
  }
}

→ Learn how to create buttons in the article “Buttons”.

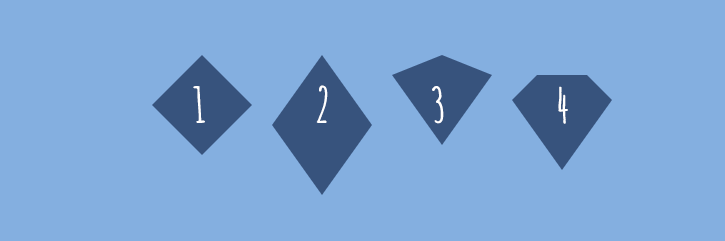

Diamonds


.diamond1 {
  width: 0;
  height: 0;
  border: 50px solid transparent;
  border-bottom-color: #32557f;
  position: relative;
  top: -50px;

  &::after {
    content: '';
    position: absolute;
    left: -50px;
    top: 50px;
    width: 0;
    height: 0;
    border: 50px solid transparent;
    border-top-color: #32557f;
  }
}

.diamond2 {
  width: 0;
  height: 0;
  border: 50px solid transparent;
  border-bottom: 70px solid #32557f;
  position: relative;
  top: -50px;

  &::after {
    content: '';
    position: absolute;
    left: -50px;
    top: 70px;
    width: 0;
    height: 0;
    border: 50px solid transparent;
    border-top: 70px solid #32557f;
  }
}

.diamond3 {
  width: 0;
  height: 0;
  border: 50px solid transparent;
  border-bottom: 20px solid #32557f;
  position: relative;
  top: -50px;

  &::after {
    content: '';
    position: absolute;
    left: -50px;
    top: 20px;
    width: 0;
    height: 0;
    border: 50px solid transparent;
    border-top: 70px solid #32557f;
  }
}

.diamond4 {
  border-style: solid;
  border-color: transparent transparent #32557f transparent;
  border-width: 0 25px 25px 25px;
  height: 0;
  width: 50px;
  box-sizing: content-box;
  position: relative;
  margin: 20px 0 50px 0;

  &::after {
    content: '';
    position: absolute;
    top: 25px;
    left: -25px;
    width: 0;
    height: 0;
    border-style: solid;
    border-color: #32557f transparent transparent transparent;
    border-width: 70px 50px 0 50px;
  }
}

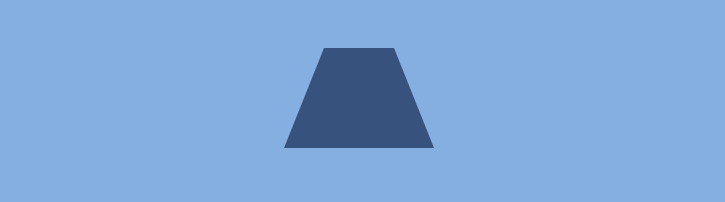

Trapezoids


.trapezoid {
  height: 0;
  width: 150px;
  border-bottom: 100px solid #32557f;
  border-left: 40px solid transparent;
  border-right: 40px solid transparent;
}

The width property defines the width of the trapezoid, and the border-bottom property defines its height. The border-left and border-right properties are useful to determine the trapezoid’s angles.

→ Learn how to make trapezoid-shaped tabs in the article “CSS Tabs”.

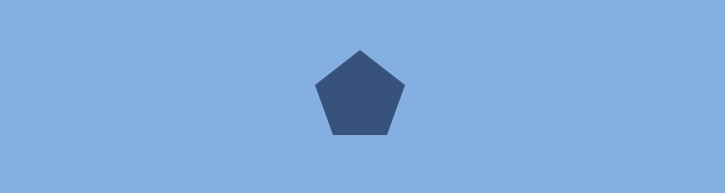

Pentagon

A pentagon is a five-sided polygon.


.pentagon {
  position: relative;
  width: 54px;
  box-sizing: content-box;
  border-width: 50px 18px 0;
  border-style: solid;
  border-color: #32557f transparent;

  &::before {
    content: '';
    position: absolute;
    height: 0;
    width: 0;
    top: -85px;
    left: -18px;
    border-width: 0 45px 35px;
    border-style: solid;
    border-color: transparent transparent #32557f;
  }
}

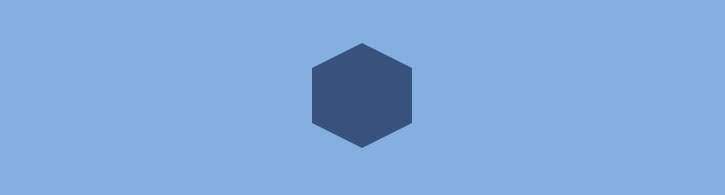

Hexagon

A hexagon is a six-sided polygon.


.hexagon {
  width: 100px;
  height: 55px;
  background: #32557f;
  position: relative;

  &::before {
    content: '';
    position: absolute;
    top: -25px;
    left: 0;
    width: 0;
    height: 0;
    border-left: 50px solid transparent;
    border-right: 50px solid transparent;
    border-bottom: 25px solid #32557f;
  }

  &::after {
    content: '';
    position: absolute;
    bottom: -25px;
    left: 0;
    width: 0;
    height: 0;
    border-left: 50px solid transparent;
    border-right: 50px solid transparent;
    border-top: 25px solid #32557f;
  }
}

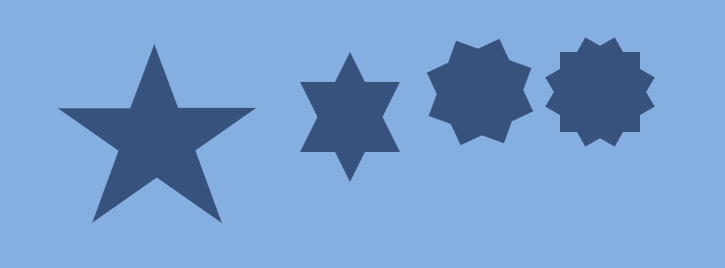

Stars

A five-pointed star:


.star-five {
  position: relative;
  display: block;
  width: 0px;
  height: 0px;
  margin: 50px 0;
  color: #32557f;
  border-left: 100px solid transparent;
  border-right: 100px solid transparent;
  border-bottom: 70px solid #32557f;
  transform: rotate(35deg);

  &::before {
    content: '';
    position: absolute;
    top: -45px;
    left: -65px;
    display: block;
    height: 0;
    width: 0;
    border-left: 30px solid transparent;
    border-right: 30px solid transparent;
    border-bottom: 80px solid #32557f;
    transform: rotate(-35deg);
  }

  &::after {
    content: '';
    position: absolute;
    top: 3px;
    left: -105px;
    display: block;
    width: 0px;
    height: 0px;
    color: #32557f;
    border-left: 100px solid transparent;
    border-right: 100px solid transparent;
    border-bottom: 70px solid #32557f;
    transform: rotate(-70deg);
  }
}

A six-pointed star:


.star-six {
  width: 0;
  height: 0;
  border-left: 50px solid transparent;
  border-right: 50px solid transparent;
  border-bottom: 100px solid #32557f;
  position: relative;

  &::after {
    content: '';
    position: absolute;
    top: 30px;
    left: -50px;
    width: 0;
    height: 0;
    border-top: 100px solid #32557f;
    border-left: 50px solid transparent;
    border-right: 50px solid transparent;
  }
}

An eight-pointed star:


.star-eight {
  background: #32557f;
  width: 80px;
  height: 80px;
  position: relative;
  text-align: center;
  transform: rotate(20deg);

  &::before {
    content: '';
    position: absolute;
    top: 0;
    left: 0;
    height: 80px;
    width: 80px;
    background: #32557f;
    transform: rotate(135deg);
  }
}

A twelve-pointed star:


.star-twelve {
  background: #32557f;
  width: 80px;
  height: 80px;
  position: relative;
  text-align: center;

  &::before,
  &::after {
    content: '';
    position: absolute;
    top: 0;
    left: 0;
    height: 80px;
    width: 80px;
    background: #32557f;
  }

  &::before {
    transform: rotate(30deg);
  }

  &::after {
    transform: rotate(60deg);
  }
}

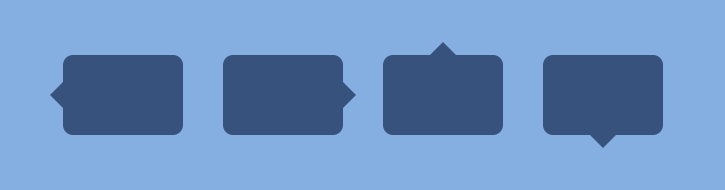

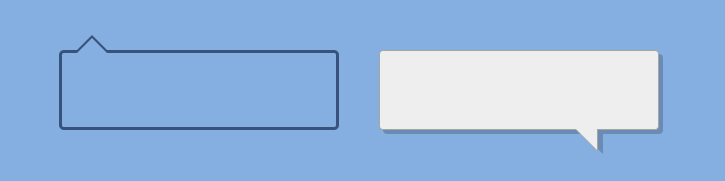

Comic Bubbles


.bubble {
  position: relative;
  width: 120px;
  height: 80px;
  background: #32557f;
  border-radius: 10px;
}

.bubble1 {
  @extend .bubble;

  &::before {
    content: '';
    position: absolute;
    left: 0;
    top: 50%;
    width: 0;
    height: 0;
    border: 13px solid transparent;
    border-right-color: #32557f;
    border-left: 0;
    margin-top: -13px;
    margin-left: -13px;
  }
}

.bubble2 {
  @extend .bubble;

  &::after {
    content: '';
    position: absolute;
    right: 0;
    top: 50%;
    width: 0;
    height: 0;
    border: 13px solid transparent;
    border-left-color: #32557f;
    border-right: 0;
    margin-top: -13px;
    margin-right: -13px;
  }
}

.bubble3 {
  @extend .bubble;

  &::after {
    content: '';
    position: absolute;
    top: 0;
    left: 50%;
    width: 0;
    height: 0;
    border: 13px solid transparent;
    border-bottom-color: #32557f;
    border-top: 0;
    margin-left: -13px;
    margin-top: -13px;
  }
}

.bubble4 {
  @extend .bubble;

  &::after {
    content: '';
    position: absolute;
    bottom: 0;
    left: 50%;
    width: 0;
    height: 0;
    border: 13px solid transparent;
    border-top-color: #32557f;
    border-bottom: 0;
    margin-left: -13px;
    margin-bottom: -13px;
  }
}

You can play with different bubble shapes using Lea Verou’s Bubbly instrument.

Comic Bubbles with Borders


.bubble5 {
  position: relative;
  width: 280px;
  height: 80px;
  padding: 5px;
  color: #32557f;
  border-radius: 5px;
  border: 3px solid #32557f;

  &::before,
  &::after {
    content: '\0020';
    display: block;
    position: absolute;
    top: -15px;
    left: 15px;
    z-index: 2;
    width: 0;
    height: 0;
    overflow: hidden;
    border: solid 15px transparent;
    border-top: 0;
    border-bottom-color: #7eb4e2;
  }

  &::before {
    top: -18px;
    z-index: 1;
    border-bottom-color: #32557f;
  }
}

To make a bubble with a shadow, add an additional div element for the arrow.


<div class="bubble6">
    <div class="bubble6-arrow"></div>
</div>


.bubble6 {
  position: relative;
  width: 280px;
  height: 80px;
  background: #efefef;
  border: 1px solid #a7a7a7;
  border-radius: 4px;
  box-shadow: 4px 4px 0 rgba(0, 0, 0, .2);
  padding: 15px;
}

.bubble6-arrow {
  position: absolute;
  right: 15px;
  bottom: -25px;
  border-left: 21px solid transparent;
  border-top: 20px solid rgba(0, 0, 0, .2);

  &::before {
    content: '';
    position: absolute;
    right: 5px;
    bottom: 2px;
    border-left: 23px solid transparent;
    border-top: 23px solid #a7a7a7;
  }

  &::after {
    content: '';
    position: absolute;
    right: 6px;
    bottom: 4px;
    border-left: 21px solid transparent;
    border-top: 21px solid #efefef;
  }
}

See more examples of CSS borders.

Other Shapes

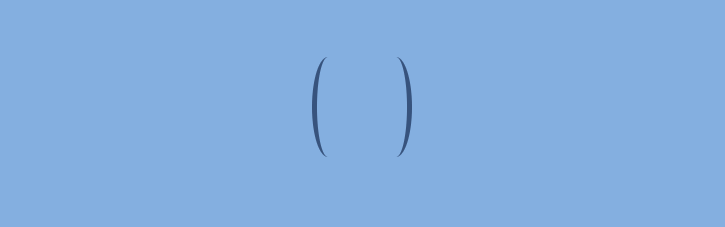

Brackets


.brackets {
  width: 100px;
  height: 100px;
  border: 5px solid #32557f;
  border-top: none;
  border-bottom: none;
  border-radius: 30px/90px;
}

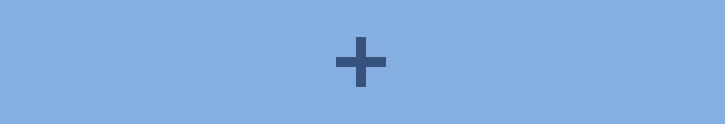

Cross


.cross {
  background: #32557f;
  height: 50px;
  position: relative;
  width: 10px;

  &::after {
    background: #32557f;
    content: '';
    height: 10px;
    left: -20px;
    position: absolute;
    top: 20px;
    width: 50px;
  }
}

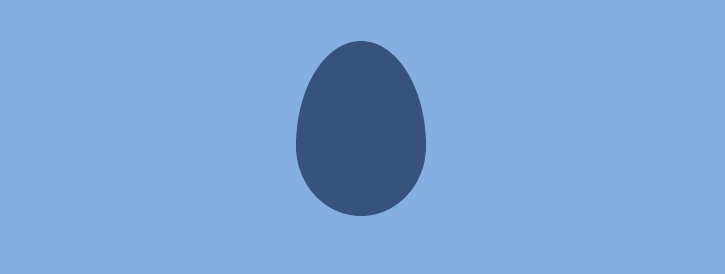

Egg


.egg {
  display: block;
  width: 130px;
  height: 175px;
  background-color: #32557f;
  border-radius: 50% 50% 50% 50% / 60% 60% 40% 40%;
}

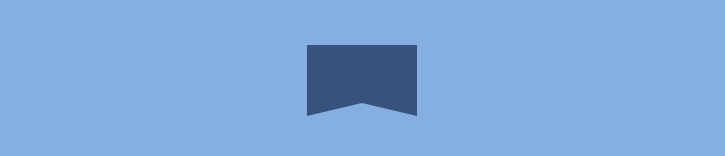

Flag


.flag {
  width: 110px;
  height: 56px;
  box-sizing: content-box;
  padding-top: 15px;
  position: relative;
  background: #32557f;
  color: #7eb4e2;
  font-size: 11px;
  letter-spacing: 0.2em;
  text-align: center;
  text-transform: uppercase;

  &::after {
    content: '';
    position: absolute;
    left: 0;
    bottom: 0;
    width: 0;
    height: 0;
    border-bottom: 13px solid #7eb4e2;
    border-left: 55px solid transparent;
    border-right: 55px solid transparent;
  }
}

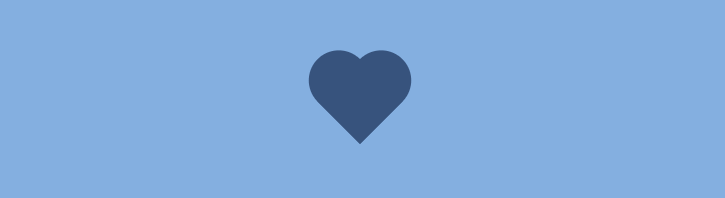

Heart


.heart {
  position: relative;
  width: 120px;
  height: 100px;

  &::before,
  &:after {
    position: absolute;
    content: '';
    left: 60px;
    top: 0;
    width: 60px;
    height: 90px;
    background: #32557f;
    border-radius: 60px 60px 0 0;
    transform: rotate(-45deg);
    transform-origin: 0 100%;
  }

  &::after {
    left: 0;
    transform: rotate(45deg);
    transform-origin: 100% 100%;
  }
}

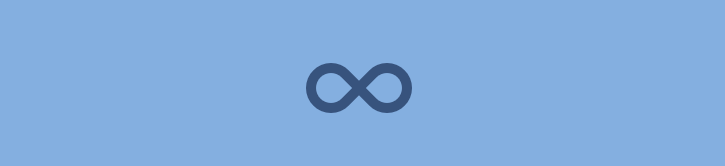

Infinity Symbol


.infinity {
  position: relative;
  width: 106px;
  height: 50px;
  box-sizing: content-box;

  &::before,
  &::after {
    content: '';
    box-sizing: content-box;
    position: absolute;
    top: 0;
    left: 0;
    width: 30px;
    height: 30px;
    border: 10px solid #32557f;
    border-radius: 50px 50px 0 50px;
    transform: rotate(-45deg);
  }

  &::after {
    left: auto;
    right: 0;
    border-radius: 50px 50px 50px 0;
    transform: rotate(45deg);
  }
}

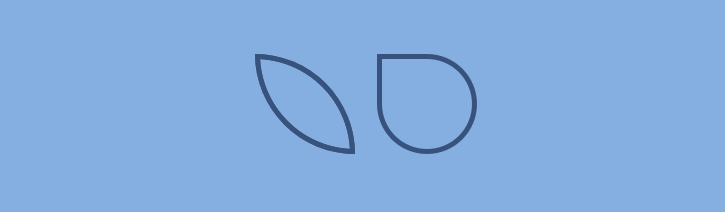

Leaves


.leaf {
  width: 100px;
  height: 100px;
  border: 5px solid #32557f;
}

.leaf1 {
  @extend .leaf;
  border-radius: 0 100%;
}

.leaf2 {
  @extend .leaf;
  border-radius: 0 50% 50% 50%;
}

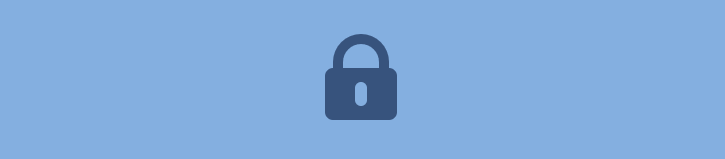

Lock


.lock {
  font-size: 4px;
  position: relative;
  top: 10em;
  width: 18em;
  height: 13em;
  border-radius: 2em;
  box-sizing: border-box;
  border: 3.5em solid #32557f;
  border-right-width: 7.5em;
  border-left-width: 7.5em;

  &::before {
    content: '';
    box-sizing: border-box;
    position: absolute;
    top: -12em;
    left: 50%;
    width: 14em;
    height: 12em;
    margin-left: -7em;
    border: 2.5em solid #32557f;
    border-top-left-radius: 7em;
    border-top-right-radius: 7em;
  }

  &::after {
    content: "";
    box-sizing: border-box;
    position: absolute;
    top: -1em;
    left: 50%;
    width: 5em;
    height: 8em;
    border: 1em solid #32557f;
    border-radius: 2.5em;
    margin-left: -2.5em;
  }
}

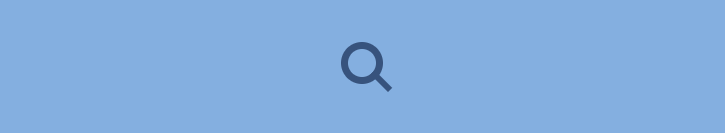

Magnifying Glass


.magnifying-glass {
  font-size: 5em;
  display: inline-block;
  width: 0.4em;
  box-sizing: content-box;
  height: 0.4em;
  border: 0.1em solid #32557f;
  position: relative;
  border-radius: 0.35em;

  &::before {
    content: '';
    display: inline-block;
    position: absolute;
    right: -0.25em;
    bottom: -0.1em;
    border-width: 0;
    background: #32557f;
    width: 0.35em;
    height: 0.08em;
    transform: rotate(45deg);
  }
}

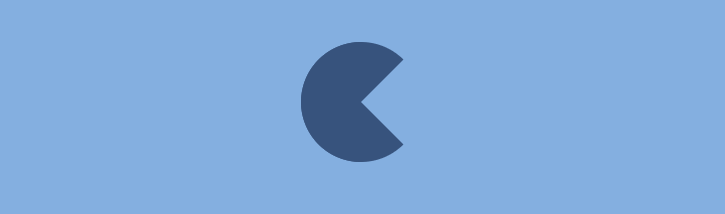

Pac-Man


.pac-man {
  width: 0px;
  height: 0px;
  border-top: 60px solid #32557f;
  border-right: 60px solid transparent;
  border-bottom: 60px solid #32557f;
  border-left: 60px solid #32557f;
  border-top-left-radius: 60px;
  border-top-right-radius: 60px;
  border-bottom-left-radius: 60px;
  border-bottom-right-radius: 60px;
}

This article is inspired by CSS-Tricks articles as well as by many other sources.

Popular Tags
